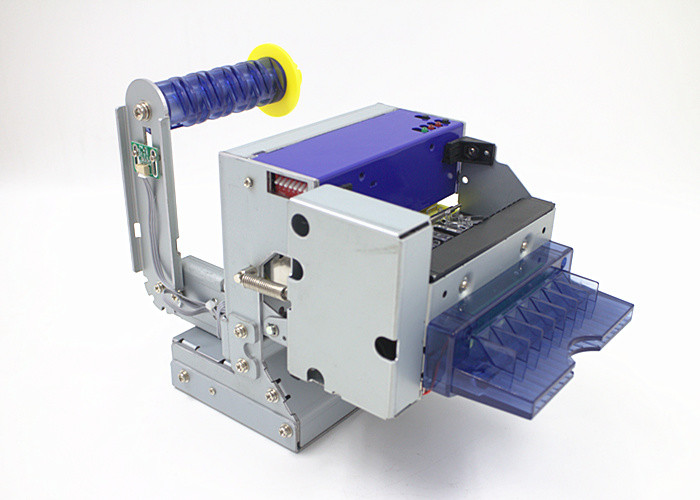

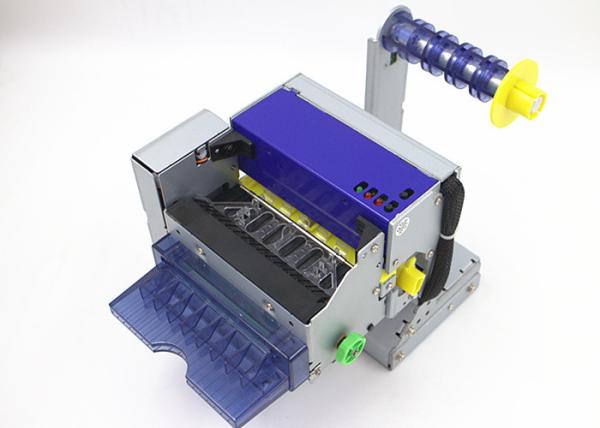

OEM Thermal Receipt Printer 80mm

Product Categories

Shenzhen Masung Technology Co. Ltd

Contact Now

Name: OEM Thermal Receipt Printer 80mm
Brand: MASUNG
Price: 1 USD

Brand Name : MASUNG

Model Number : MS-D347

Certification : CE RoHs

Place of Origin : China

MOQ : 1

Price : 1-200Dollars/Piece

Payment Terms : T/T

Supply Ability : 5000

Delivery Time : 1-15Days

Packaging Details : Spume Materials Carton

mechanism： : CAPD347

Printing method : Thermal dot line printing

Paper width : 80 mm

Printing width : 72 mm

Paper thickness : 54~78 um

Printing speed : 200 mm/s

Cutting type : Full/partial ( by adjustable)

Dimension (L*W*H) : 227.5*127.8*131.45 mm

Interface : Parallel/USB driver

power supply : DC 24V/2.5A

command : esc/pos

Contact Now

OEM Thermal Receipt Printer 80mm

Features:

Specification:

mechanism:			CAPD347
Printing method			Thermal dot line printing
Dots/line			576 dots/line
Dot pitch			8 dot/mm
Paper width			80 mm
Printing width			72 mm
Paper thickness			54~78 um
Roll diameter			Max180 mm (external roll support)
Printing speed			200 mm/s
Paper feed direction			180° horizontal
Sensors	Head temperature		Thermistor
	Paper press shaft		Mechanical switch
	Paper end		Photo interrupter
Cutting type			Full/partial ( by adjustable)
Font size			ASCII:917;1224; Chinese: 24*24
Power supply		Logic circuit	4.75~5.25 V
		Motor	21.6~26.4 V
Dimension (LWH)			227.5127.8131.45 mm
Weight			Approx 1.92 kg
Reliability			Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment		Work temperature	-10 ℃~50℃
		Work humidity	20~85% RH
		Storage temperature	-25℃~70℃
		Storage temperature	10~90% RH

Interface	RS-232 /USB/Parallel
power supply	DC 24V/2.5A
Command set	ESC/POS
Barcode	supported
Firmware location	512KB Flash memory
Buffer	32 KB
SRAM	64KB (extra)
Driver	Parallel/USB driver
System	Windows/Android/Linux OS
Accessories:	Sensors	paper near end sensor;
		paper jam sensor;
		dragging paper sensor;
	Paper holding unit;
	Paper bezel(paper guide mouth)
	Interface connector;
	Power supply unit
	Cable

Application:

Self-service terminal; ATM; parking machine; payment kiosk; ticket vendor; inquiry machine;

multimedia kiosk, healthcare devices; gaming machine; label sticker printer and more OEM Thermal Receipt Printer 80mm
